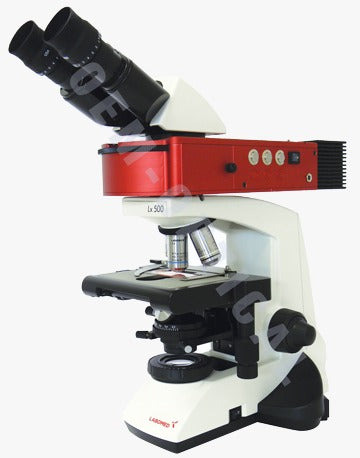

The Labomed LX500 by ESAW India represents cutting-edge LED fluorescence microscopy, engineered for precision imaging in life sciences, pathology, biotechnology, and advanced educational labs. Its ergonomic design, Köhler illumination system, and versatile accessories support demanding workflows across students, medical & engineering colleges, scientific research centres, and industrial quality-control labs.
This model serves as affordable fluorescence microscope for labs, combining export-quality optics from India with global reliability. Ideal for buying in bulk for university biology departments or large-scale R&D teams in Africa, Europe, Asia, and the USA, it’s a smart choice as educational lab equipment for schools, science equipment for students, and best microscope for students engaged in live-cell imaging, histopathology, and material analysis.
Explore our broader optical instrumentation lineup, including the Prima DNT NuVar 20 Surgical Microscope and Prima CS Gynaecology Microscope for specialized clinical applications.
Technical Specifications:
Stand Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Body Siedentopf Binocular or Trinocular head; 30° inclined or ergonomic 0°–25° tilting Binocular, 360° rotatable; Inter‑pupillary distance 47 – 75 mm
Eyepiece Focusable 10×/22 mm widefield eyepiece with foldable eyeguard, antifungal coated
Nosepiece Reverse‑angle quintuple nosepiece (ball bearing) with click‑stops and rubber grip
Objectives RP2 series Infinity Corrected DIN Plan Achromatic objectives: 4×, 10×, 40× (spring‑loaded), 100× (spring‑loaded, oil), antifungal coated
Mechanical stage Rackless X‑axis ceramic double plate stage, size 200 × 160 mm, X/Y travel 76 × 50 mm; double specimen holder
Condenser Flip‑top sub‑stage Abbe condenser NA 1.25 with aspheric lens; iris diaphragm and blue daylight filter; rack & pinion movement
Focusing Co‑axial coarse & fine focusing; fine adjustment 0.3 mm/rotation
Illumination True Köhler LED illumination with variable intensity and built‑in rechargeable battery; LED lamp life ≈ 100,000 hrs
Fluorescent Attachment Triple‑filter LED fluorescence attachment:
UV (Ex:350nm/Dich:400nm/Bar:460nm),
Blue (Ex:475nm/Dich:500nm/Bar:535nm),
Green (Ex:535nm/Dich:560nm/Bar:595nm)
Electrical Universal input 100–240 V AC, 50/60 Hz; built‑in voltage stabilizer
Warranty 5-year manufacturer warranty
Certification UL, CE, ISO 9001:2000, ISO 13485:2003
Catalog Number: 9144600
Quantity per case: 1 Unit
