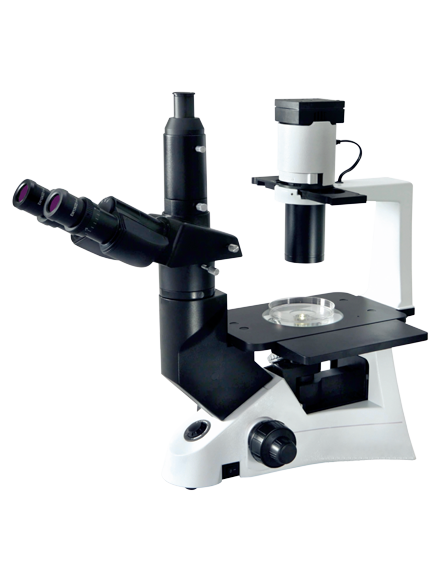

The Magnus INVI Microscope is a professional-grade inverted trinocular microscope expertly crafted for cell culture, live-cell imaging, and microbiology, designed to meet the needs of students, schools and colleges, chemistry and science labs, medical/nursing/engineering colleges, industrial R&D centres, and research labs. Combining export-quality optics from India with rugged Make‑in‑India build, it’s an ideal, affordable INVI microscope for labs worldwide—from Asia and Africa to Europe and the USA. Educational institutions and procurement teams frequently buy INVI in bulk to equip multiple units for science equipment for students in cell biology, tissue engineering, and disease modeling. With its clear imaging and smooth operation, the INVI stands out as one of the best microscopes for students and professionals.
Expand your microscopy suite with complementary ESAW products like the MLXi Plus LED Trinocular Microscope, MSZ‑Series Stereo Microscope, and the advanced FL Inverse Fluorescence Microscope.
Technical Specifications:
Optical system: Infinity-corrected plan & phase optics with uniformly centered, interchangeable & parfocal, tropicalized anti‑fungus treatment (magnusopto.com)
Objectives: LWD Plan Infinite 4X, 40X; LWD Plan Infinite Phase 10X, 20X
Eyepieces: High‑point extra wide‑field eyepiece EW10×/22
Diopter Correction: ±5 diopter adjustment (left tube)
Observation Head: Trinocular, 30°, interpupillary 48–75 mm
Power supply: Built-in 6V 30W halogen/LED, universal 100–240 V AC, 50 Hz
Nosepiece: Quintuple ball-bearing click-stop turret
Body: Aluminium die-cast with precision ball-bearing movements
Mechanical Stage: Plane 160×250 mm with 70×180 mm auxiliary stage
Focusing: Co-axial coarse & fine (37.7 mm coarse/rev; 0.2 mm fine/rev)
Condenser Holder: ELWD condenser NA 0.3, working distance 72 mm
Phase Annulus: 10X–20X
Filter: Blue, green & frosted glass (Ø 45 mm)
Accessories: Optional PH40X objective, aux. stage, Terasaki & petri dish holders, warm plate, MagCam cameras, time-lapse
Catalog Number: INVI
Quantity per case: 1 Unit
