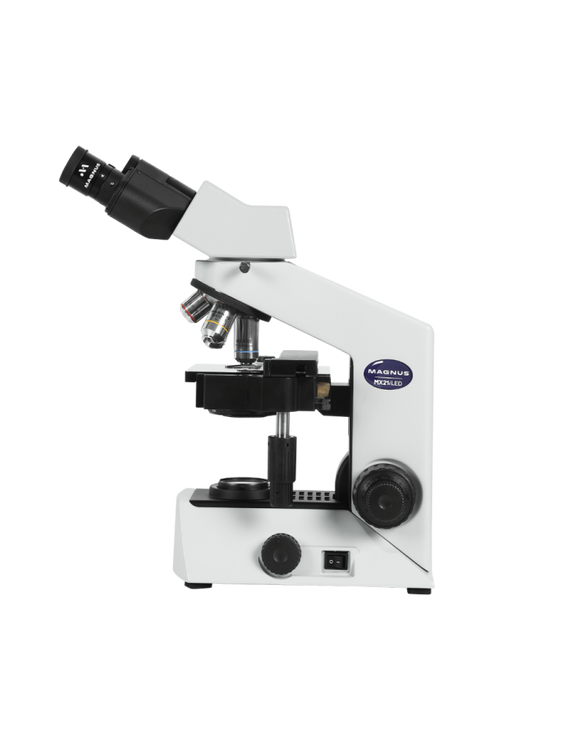

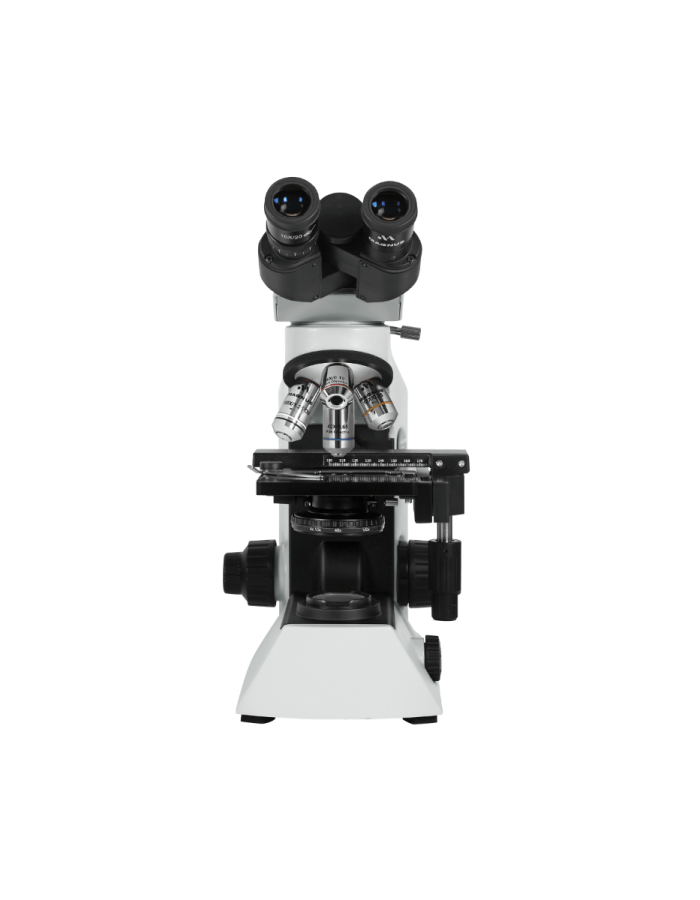

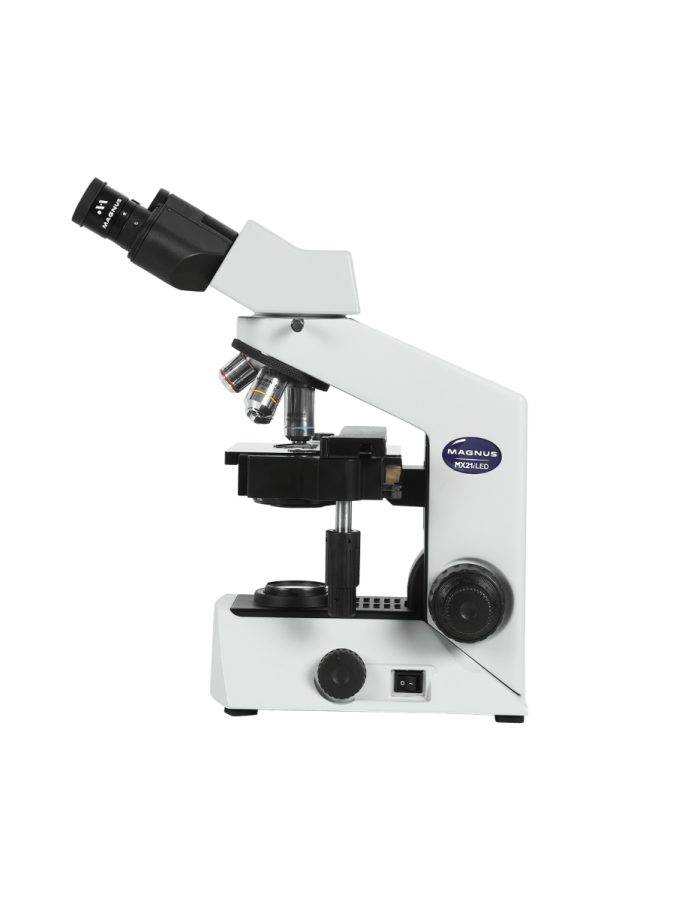

The Magnus MX21i Microscope blends Japanese optical precision with Indian assembly excellence, delivering dependable performance for a wide range of users—from students and schools to medical, engineering, and chemistry colleges, industrial labs, and research centres globally. Whether you’re equipping classrooms in India, Africa, Asia, Europe, or the USA, this is your go-to affordable research-grade microscope, ideal to buy in bulk and deploy as educational lab equipment for schools or science equipment for students. With anti-fungal optics and a sturdy build, it’s among the best microscopes for students, delivering export-quality durability and precision.
Schools and universities can easily integrate the MX21i into biology and chemistry classrooms, while medical and nursing institutes rely on it for microbiology, histology, and pathology studies. Industrial QC teams and research labs benefit from its high magnification and optional fluorescence modules. Its ergonomic design and optional LED/battery lighting make it suitable even in low-resource settings.
Expand your lab setup with complementary ESAW instruments like the MLXi Plus LED Trinocular Microscope, MSZ‑Series Stereo Microscope, and FL Inverse Fluorescence Microscope.
Technical Specifications:
Optics: iNEA Infinity Plan Achromat 4×, 10×, 40× (spring), 100× (oil spring) (magnusopto.com)
Eyepieces: WH10× (FN 20 mm) with eyeguards
Observation Head: 30° inclined Siedentopf Binocular or Trinocular, 360° rotatable, diopter adjustment, 48–75 mm interpupillary
Nosepiece: Quadruple ball-bearing, outward-click stop
Stage: Rack-less mechanical 120×132 mm with 76×30 mm traverse and single slide holder
Focusing: Co-axial coarse & fine (20 mm range; fine 0.25 mm/rotation)
Condenser: Pre-centered Abbe NA 1.25, rack & pinion, blue filter
Illumination Options:
• 6 V 20 W halogen base (100–240 V AC)
• 3 W LED (30 k hr lifespan)
• LED with NiMH battery backup (magnusopto.com, novelopto.com)
Body: Aluminum die-cast with ball-bearing mechanics
Optional Accessories: Phase, Darkfield, Fluorescence, Kohler attachments; MagCam cameras
Magnification Range: 40×–1000×
LED Life: 30,000 hours
Catalog Number: MX21i
Quantity per case: 1 Unit
